Electrical Reactor Coil Winding Machine 600-2 Chuangling Amorphous

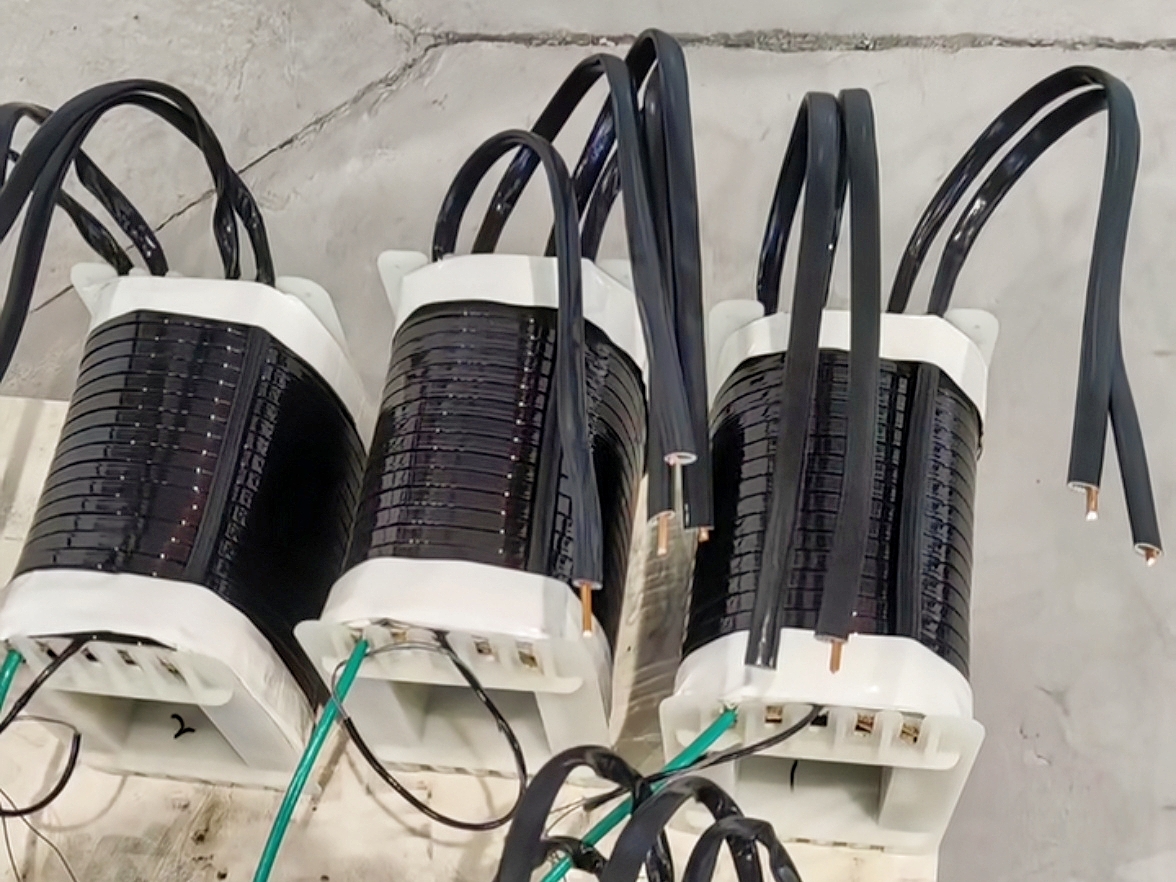

suitable for winding various types of small and medium-sized reactor coils and similar process coils, which can be shaped as circular, oval, rectangular,
Advanced Foil Winding Machine for Precision Reactor & Coil Manufacturing
Versatile Winding Solutions for Diverse Coil Shapes

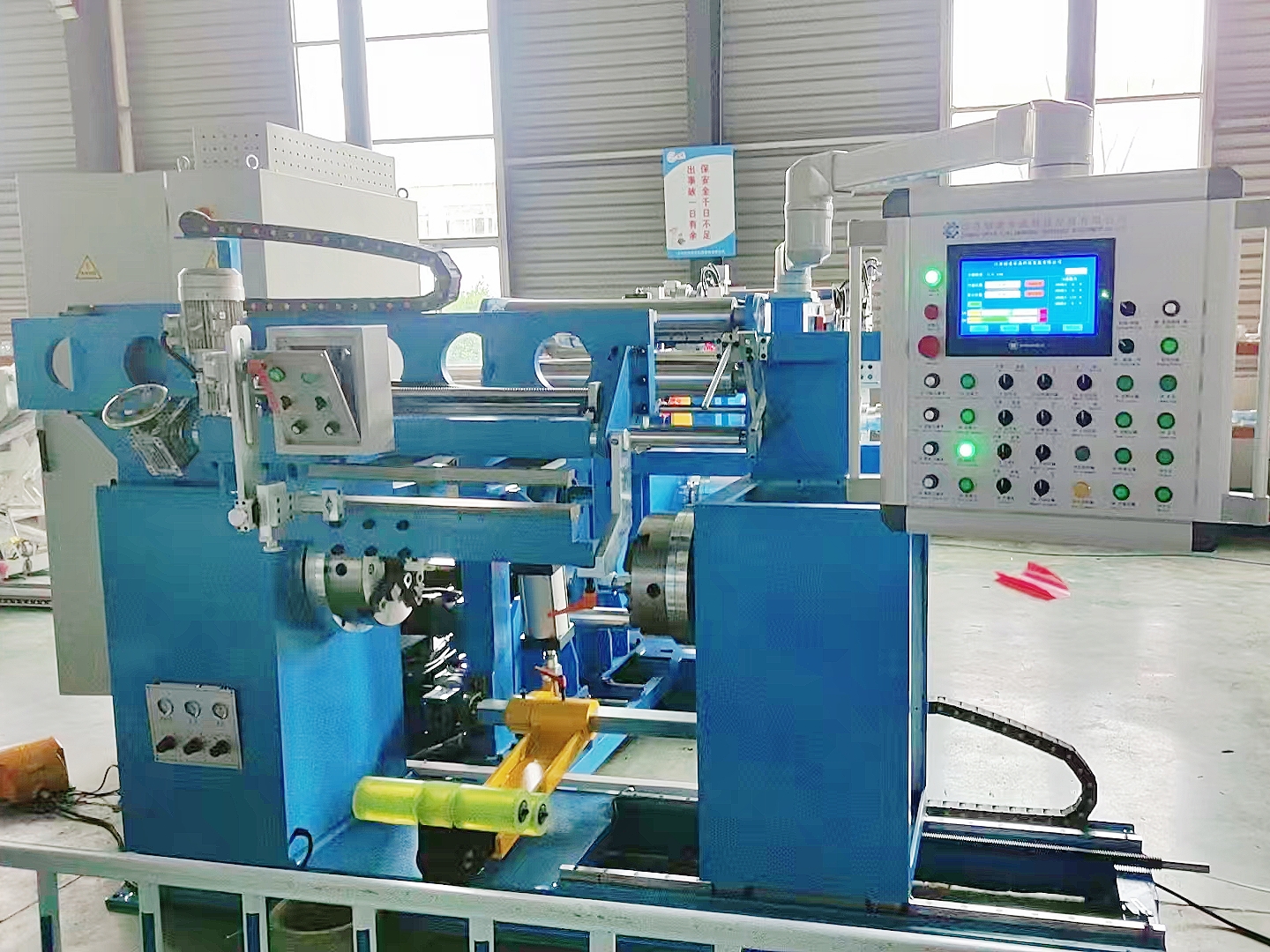

Our state-of-the-art foil winding machine is engineered to produce high-quality coils for small to medium-sized reactors and similar applications. Capable of creating circular, oval, or rectangular coils, it ensures flexibility for diverse industrial requirements.
Square-Core Compatibility & Enhanced Stability
Designed to wind coils directly onto square-section iron core columns, this machine features adaptive clamping arms on both the winding disc and tailstock support disc. These components securely grip cores of varying specifications, ensuring stability and precision during operation. Equipped with dual servo motor-driven spindles, it delivers synchronized, equal torque at both ends for consistent winding performance.
Multi-Layer Foil Winding Capabilities
- Double-Layer Foil Winding: Supports stacked or parallel winding of dual-layer foil strips.
- Single-Layer Winding: Ideal for simpler coil designs.
- Material Flexibility: Processes copper or aluminum foil conductors of varying thicknesses, paired with wide-band insulating materials for reliable interlayer insulation.
All-in-One Production Efficiency
This machine streamlines the entire coil manufacturing process:
1. Single-Pass Winding: Forms finished coils in one operation.
2. Integrated Lead Welding: Automatically welds inner and outer leads.
3. Surface Packaging: Completes external wrapping for durability.
Smart Operation & User-Friendly Controls
Achieve intelligent production with:
- Real-time alarm logs and error diagnostics for quick troubleshooting.
- Customizable parameter presets to streamline workflow.
- Centralized solenoid valve control for automated adjustments.
- Intuitive interface with access to operational data and maintenance history.
Compliance & Reliability
Engineered to meet strict industry standards, this machine ensures every foil coil meets precise electrical and mechanical specifications. Its robust design guarantees longevity, making it a critical asset for manufacturers of transformers, reactors, and other electrical components.
Why Choose Our Foil Winding Machine?
- Precision: Dual servo motors ensure accuracy for complex coil geometries.
- Adaptability: Compatible with square, round, or custom cores.
- Efficiency: Reduces production time with end-to-end automation.
- Smart Integration: Enhances productivity through data-driven insights.
Ideal for: Transformer manufacturers, electrical component suppliers, and industrial facilities specializing in custom coil production.
Upgrade your coil manufacturing process today! Contact us to learn how our advanced foil winding technology can optimize your production line and deliver superior-quality coils.
